overview
Acoustic Quilt is a superior laminate product offering a combination of sound absorption and sound blocking due to its unique 2kg/m² acoustic membrane laminated in the middle.
testimonial
"We could not afford to lose 75 mm using mineral wool on our wall. The Acoustic Quilt was the product for us as it only took up 30mm and performs far better."
Gloria Turner – Blackpool
Our Acoustic Quilt consists of a laminate of 25mm Acoustic Fibreglass, 2Kg acoustic membrane and 25mm Acoustic Fibreglass.
It performs approx 4 times better than our Acoustic Mineral Wool as it has a barrier layer sandwiched in the middle which blocks airborne sound better than lead.
The Acoustic Quilt exceeds the new Document E Resistance to the Passage of Sound' making it an attractive product for modern building techniques.

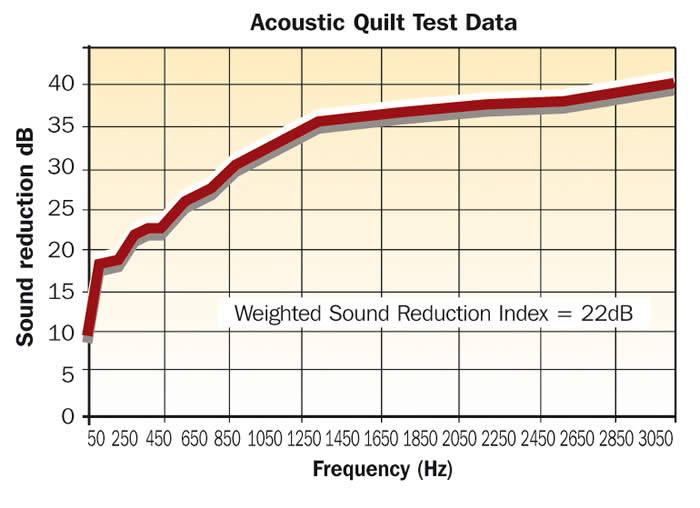

Acoustic Quilt can up rate a typical 12.5mm partition by up to 16dB!
Acoustic Quilt can up rate a typical floor section by up to 13dB!
This product was featured on the Channel 4 show "Grand Designs" last year..
Environmental Information.
The quilting used in this product is a glass mineral wool product, manufactured from silica sand, the Earth's most abundant naturally occurring mineral. Glass mineral wool is one of the most environmentally friendly insulation materials. Inorganic and completely inert, over 70% of the raw material used in the production cycle are recycled. This process does not include the use of CFC's, HCFC's or other environmentally damaging gases.
Roll Size: 5m x 0.6m or 5m x 1.2m
Coverage: 3m² or 6m²
Thermal Resistance (R Value): 1.43 m2K/W
Operating Temperature: -10°C to +230°C
Fire Rating: Class 1
FIXING:
Acoustic Quilt is installed in a similar way to standard glass fibre rolls.
When installing between floor joists its best to fold the quilt around a piece of wooden battening and screw the battening into the sides of the joists. This will compress the Acoustic quilt tight against the joists for the very best performance. If installing within a stud frame do the same fixing method to the header plate and the sides of the studs.
(This product is ideal for providing a soundproofing layer above lightweight suspended ceiling grids.)
Please Note: this product is made with 25mm fibreglass either side of the membrane but due to being shipped in roll form will come compressed overall to around 25mm.
