Squaresorption Technical Specifications

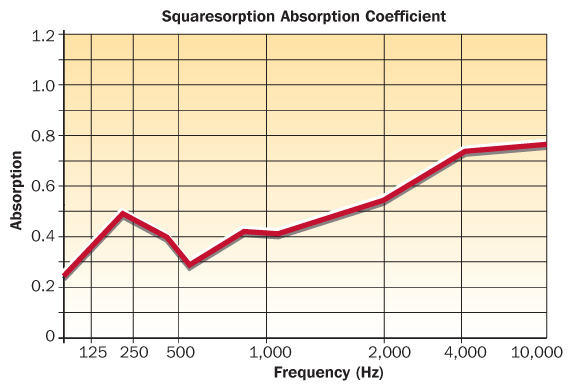

Sound absorption coefficients for Squaresorption a stylish sound absorbing tile for suspended ceiling systems

SQUARESORPTION acoustic tile size is 593 x 593mm to fit into a standard 24mm, 600 x 600mm modular grid system. Tegular edge and flat edge versions are available. We recommend the perimeter cuts are made of flat tiles and not tegular tiles. The tiles can be cut with standard metal snips. A mirror finish grid would add a lustre finish to the entire ceiling design.

WEIGHT, MAINTENANCE & FIRE RATING

Weight of tile: 1.5kg/m2 nominal.

Fire rating: Class ‘0’ to BS476 Part 6/7.

COLOURS

The expanded diamond metal face is available in chromed steel finish or in white. Other RAL colours are available on special request. The acoustic cassette pad is available in grey or
black. Therefore, four standard combinations are available.



"));
