Various sizes. Please see below.
High performance bespoke timber acoustic doorsets.
Terry Kappa, Downside Studio
We are specialists for supplying acoustic doorsets and wooden soundproof doors for all types of internal applications.

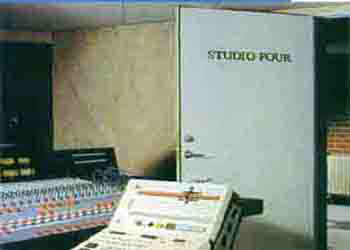

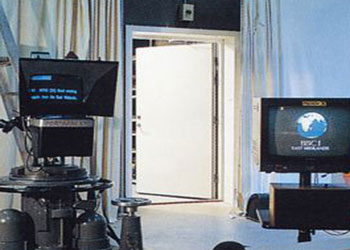

Our acoustic timber doors are extremely high performance sound reducing doorsets. These top quality acoustic doorsets are available in a wide range of finishes and are fire rated. These acoustic doors are used in areas which require high sound reduction performance such as radio/TV studios, music rooms, interview rooms, cinemas etc.

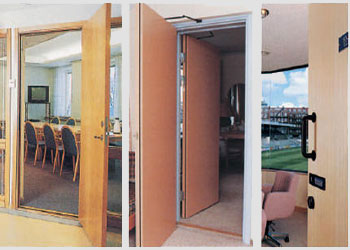

Our single and double acoustic internal doorsets are fire rated doors available in a wide range of wood and laminate finishes. They are used wherever high sound reduction performance is required between noise sensitive areas such as in private offices and consulting rooms.
Acoustic doors are high performance constructions available in two standard acoustic ratings:
High performance version is called D44 and has a sound reduction value of Rw = 44dB (Double leaf doorset is 41dB rated
Medium performance version is called D35 and has a sound reduction value of Rw = 41dB
Other acoustic ratings such as 38dB may be available on request
Single leaf 44dB doorset 85kg
Single leaf 35dB doorset 74kg
Double leaf 41dB doorset 144kg
Double leaf 35dB doorset 123kg
Acoustic Doorsets are supplied with hinges and seals pre-fitted. Handles, lockcases etc. are usually supplied and fitted by others to suit customer requirements.
Veneers: Standard veneers can be seen on the tech spec page above. Others on request.
Note: The term 'doorset' on this page refers to complete assemblies (including frame, seals, threshold, doorleaf and hinges). To achieve the optimum fire and acoustic performance, the acoustic doors must be supplied and fitted as complete.
PLEASE SEE FULL DOOR DIAGRAMS, FURTHER DETAILS & VENEER FINISHES ON OUR TECH SPEC PAGE ABOVE.
