product details

size: See chart below.

Density

12.5mm 11.5kg/m2

15mm 13.75kg/m2

CALL TO ORDER PRICESHealth and safety sheet download pdf

key benefits

soundproofing: Acoustic Plasterboard

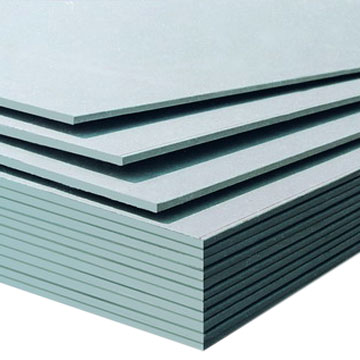

stack of acoustic plasterboard
stack of acoustic plasterboard with one panel upright corner view of staggered pile of acoustic plasterboard

stack of acoustic plasterboard

overview

Acoustic Plasterboard (or soundproof plasterboard) is greater in mass and this helps absorb and block sound energy, giving enhanced sound insulation to any wall & ceiling. The preferred choice to soundproof stud walls and ceiling joists and can easily be used on any DIY soundproofing project.

testimonial

"Does what is says on the tin. Excellent product which really cut down the noise from upstairs." James Clark

description.

PLEASE NOTE THAT THIS PRODUCT ON ITS OWN IS NOT ENOUGH TO SOUNDPROOF A WALL OR CEILING. IT NEEDS TO BE USED WITH EITHER OUR RESILIENT BAR OR M20AD SOUND INSULATING MATERIALS. DUE TO DELIVERY METHODS THERE IS A MIN ORDER OF 5 BOARDS PER ORDER

Acoustic Plasterboard is designed for use in areas where sound reduction is of particular importance and noise from neighbours is to be kept to a minimum. Its high mass helps block and absorb sound energy, giving enhanced acoustic performance to any wall or ceiling. It complies fully with BS EN520 and is categorised as Types A, D.

Acoustic Plasterboard has a Thermal Conductivity figure of k = 0.24W/mK

Thermal Resistance:
12.5mm = 0.05m2 K/W
15.0mm = 0.06m2 K/W

APPLICATIONS - Higher density Acoustic Plasterboard is particularly effective when applied to the underside of timber joisted ceilings, lightweight partition systems and when bonded to our M20AD soundproofing for walls. The soundproofing properties of Acoustic Plasterboard are also enhanced when used with sound absorbing Resilient Bars.

Acoustic Performance Information When used with metal "C" Stud Partitions

Number of 12.5mm thick Layers
Stud Size & Gauge (mm)
Using Sound Service AMW & Acoustic Plasterboard and measured in dB (RW)
1
50 (0.55)
43
2
51
1
70 (0.55)
45
2
54
1
146 (0.55)
47
2
56















Sheet Size Guide

Dimensions (mm)
Thickness Width Length
12.5 1200 2400

15 1200 2400

 19  600 2400
