part-e: Single Stud System using Acoustic Quilt
overview
The latest Part E system for single stud walls using acoustic plasterboard and sound absorbing/sound barrier Acoustic Quilt.
This page is best viewed in Internet Explorer. Some Firefox users may not see all published content.
product details
size
Supplied on a roll, 5m x 0.6m or 5m x 1.2m
key benefits
- Only 130mm footprint with a quick construction process
- 67 % of each roll is made from recycled materials
- Only 52mm thick before compression
- High Acoustic Attenuation
- Lightweight at 2.1Kg/m²
- Very flexible and easy handle, Easy to cut and mould.
- Available on a roll, in two sizes.

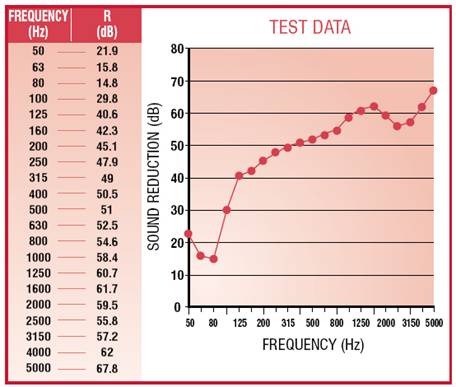

| Acoustic Quilt Sound Reduction Performance | ||
|---|---|---|
| RwdB | RwdB + Ctr | |
| 55 | 48 | |
| Part E Acoustic Requirement | ||
| New Build | Refurbishment | |
| DnT,w + Ctr dB | DnT,w + Ctr dB | |
| 45 | 43 | |

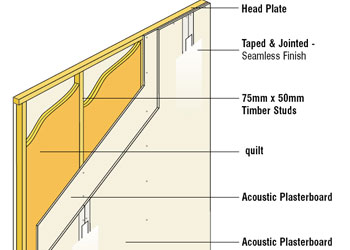

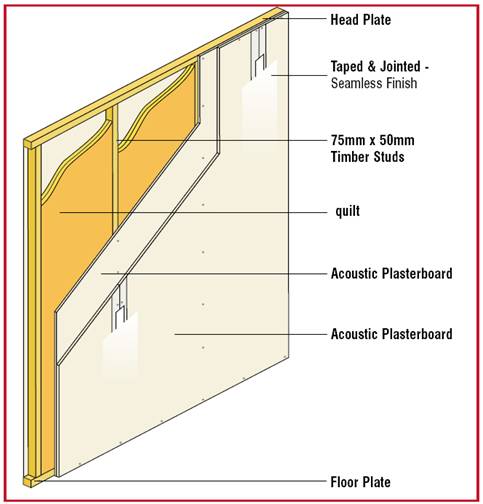

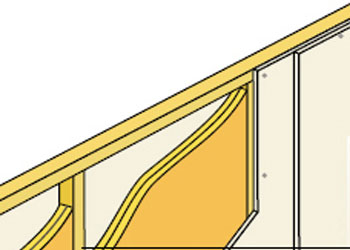

Components and Fixing Data:
- 1 x 12.5mm Acoustic Plasterboard (offset and screwed to)
- 1 x 15mm Acoustic Plasterboard (offset and screwed to)
- 75mm x 50mm Timber Studs (at 600mm centres)
- 52mm Acoustic Quilt (suspended in cavity between studs)
- 1 x 12.5mm Acoustic Plasterboard (screwed to)
- 15mm Acoustic Plasterboard (screwed through)
| Technical Data | ||
|---|---|---|
| Application: | Separating Wall | |
| Mass per Unit: | 55 kg / m2 | |
| Footprint Width: | 130mm | |
| Fire Protection: | 60 Minutes | |
| Certification: | Sound Reduction index to BS EN ISO 140-3: 1995. Rating according to BS EN ISO 717-1: 1997 | |
Information on our Acoustic Quilt

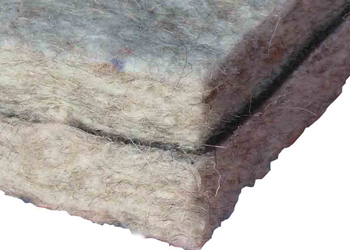

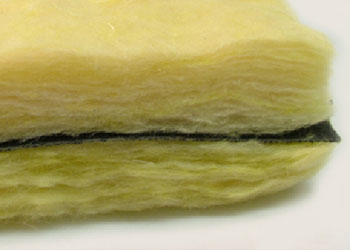

Acoustic Quilt consists of a laminate of 25mm Acoustic Fibreglass, 2Kg acoustic membrane and 25mm Acoustic Fibreglass. Combined, these products give a superior level of sound absorption and also act as a very effective sound barrier stopping noise and reducing the amount of noise that passes through it.
It performs approx 4 times better than normal acoustic mineral wool as has a sound stopping barrier layer sandwiched in the middle which blocks airborne sound comparable to lead.
Acoustic Quilt exceeds Part E Resistance to the Passage of Sound making it an attractive product for both new build and conversion of existing buildings into flats.
Acoustic Quilt can up rate a typical 12.5mm partition by up to 16dB!
Acoustic Quilt can up rate a typical floor section by up to 13dB!
Environmental Information.
The quilting used in this product is a glass mineral wool product, manufactured from silica sand, the Earth's most abundant naturally occurring mineral. Glass mineral wool is one of the most environmentally friendly insulation materials. Inorganic and completely inert, over 70% of the raw material used in the production cycle are recycled. This process does not include the use of CFC's, HCFC's or other environmentally damaging gases.
Roll Size: 5m x 0.6m or 5m x 1.2m
Coverage: 3m² or 6m²
Thermal Resistance (R Value): 1.43 m2K/W
