product details

size
Supplied on a roll, 5m x 0.6m or 5m x 1.2m

PRICESTEST CERTIFICATEdownload acrobat

key benefits

PART - e: Double Stud System using Acoustic Quilt


Sound absorbing and sound blocking Acoustic Quilt for sound proofing walls, floors and ceilings Double Stud wall sound proofing with Acoustic Quilt and Acoustic Plasterboard Double Stud wall soundproofing with Acoustic Quilt and Acoustic Plasterboard
Sound absorbing and sound blocking Acoustic Quilt for sound proofing walls, floors and ceilings

overview

The latest Part E system for sound proofing double stud walls using high density acoustic plasterboard and Acoustic Quilt. Ideal for controlling noise through separating walls and as required by the current Building Regulations.

description.

.
Acoustic Quilt Sound Reduction Performance
RwdB RwdB + Ctr
62 52
Part E Acoustic Requirement
New Build Refurbishment
DnT,w + Ctr dB DnT,w + Ctr dB
45 43



Components and Fixing Data:

.
Technical Data
Application: Separating Wall
Mass per Unit:  46.4 kg / m2
Footprint Width: 220mm
Fire Protection: 60 Minutes
Certification: Sound Reduction index to BS EN ISO 140-3: 1995. Rating according to BS EN ISO 717-1: 1997

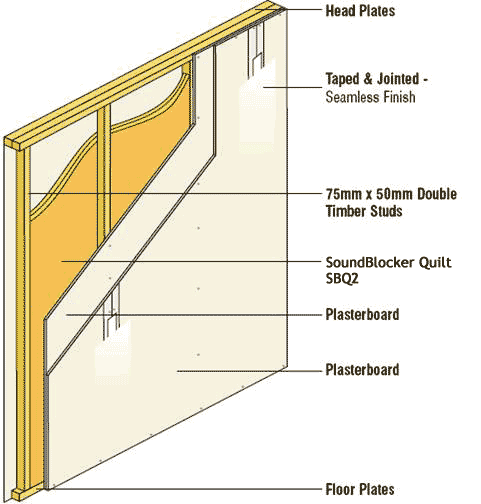

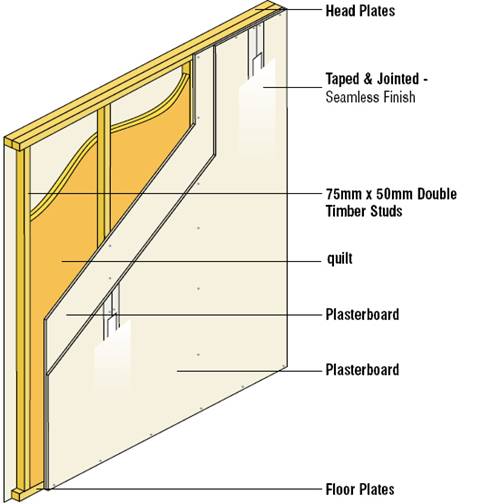

Detail of soundproofed stud wall with Acoustic Quilt and Acoustic Plasterboard

Sound proofed double stud separating wall acoustic performance data

Sound proofed double stud separating wall plan detail

Acoustic Quilt Information

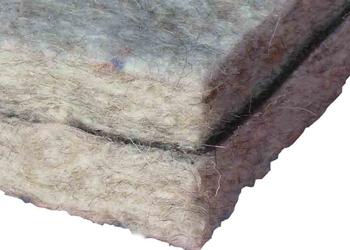

Acoustic Quilt consists of a laminate of 25mm Acoustic Fibreglass, 2Kg acoustic membrane sound blocker and 25mm Acoustic Fibreglass.

Combined, these products give a superior level of sound absorption and also act as a very effective sound barrier stopping noise and reducing the amount of noise that passes through it.

It performs approx 4 times better than normal acoustic mineral wool and has a sound stopping barrier layer comparable to lead sandwiched in the middle which effectively blocks airborne sound.

Acoustic Quilt exceeds Part E Resistance to the Passage of Sound making it an attractive product for both new build and conversion of existing buildings into flats.

Acoustic Quilt can up rate a typical 12.5mm partition by up to 16dB!
Acoustic Quilt can up rate a typical floor section by up to 13dB!

Environmental Information.

The quilting used in this product is a glass mineral wool product, manufactured from silica sand, the Earth's most abundant naturally occurring mineral. Glass mineral wool is one of the most environmentally friendly insulation materials. Inorganic and completely inert, over 70% of the raw material used in the production cycle are recycled. This process does not include the use of CFC's, HCFC's or other environmentally damaging gases.




"));
